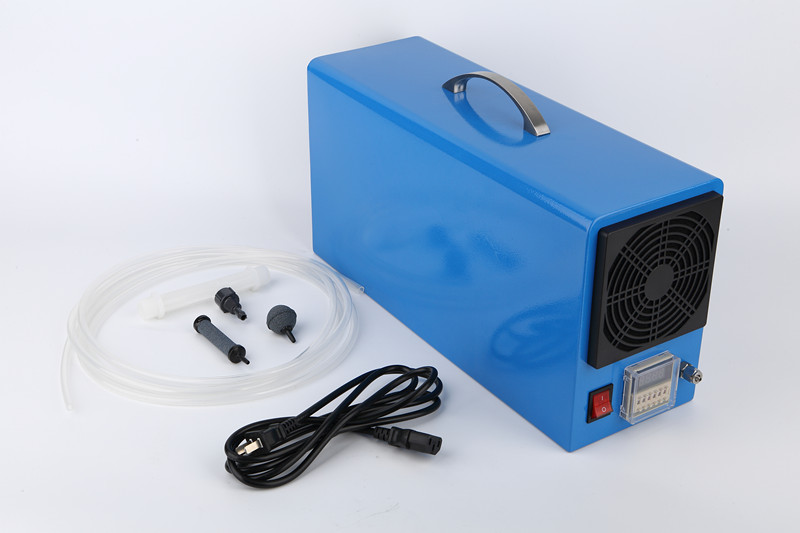

1. Portable ozone generator, easy to handle, suitable for different scenarios (home ,office, hotel room, etc.)
2. 304 S. Steel cabinet
3. With digital timer, can set the working time based on the requirements.
4. Beautiful design
1. Apply on water purification
Ozone can be used on waste water treatment, agriculture water treatment, aquaculture water treatment, drinking water treatment, swimming pool water treatment, etc.
Ozone generator model OTH-AP001 mainly used on domestic drinking water purification, home aquarium water treatment, fruit & vegetable washing, etc.
The referenced ozone concentration use on water treatment
Ozone dissolved in water
2. Apply on air purification
Ozone can be used on different kind of air treatment scenarios for air sterilization, air purification, air deodorizing, etc.
Ozone generator model OTH-AP001 mainly used on home air purification, hospital air sterilization, hotel room odor removal, household fruit & vegetable fresh keeping, etc.
The referenced ozone concentration used on air purification
Ozone output required per hour(mg/H)
Medical apparatus Disinfection
Working time: 60minute at 20PPM
Sickroom, operation room
|5.5-15||Booting ozone gas if necessary. According to the standard to check the total number of bacteria|
The relative humidity of 90% or so, clothes hangers
Air purification and fresh keeping
|booting 2-3 times a day|
Chlorophyll less vegetables
Feeding raw material:Air
Ozone gas output: 500-1000 Mg/H
Ozone outlet size: 5*8mm
Air flow: 8 LPM
Ozone concentration: 2.5 Mg/L
Electrical current:45 W
Power supply: 110V or 220V
Purified space: 40CBM
Unit weight: 6 KGS
Gross weight: 7 KGs
Unit size (MM): 150*250*460mm
Free spare part: Venturi 3/4 1pc; Teflon hose: 5 meters; Air bubble stone
